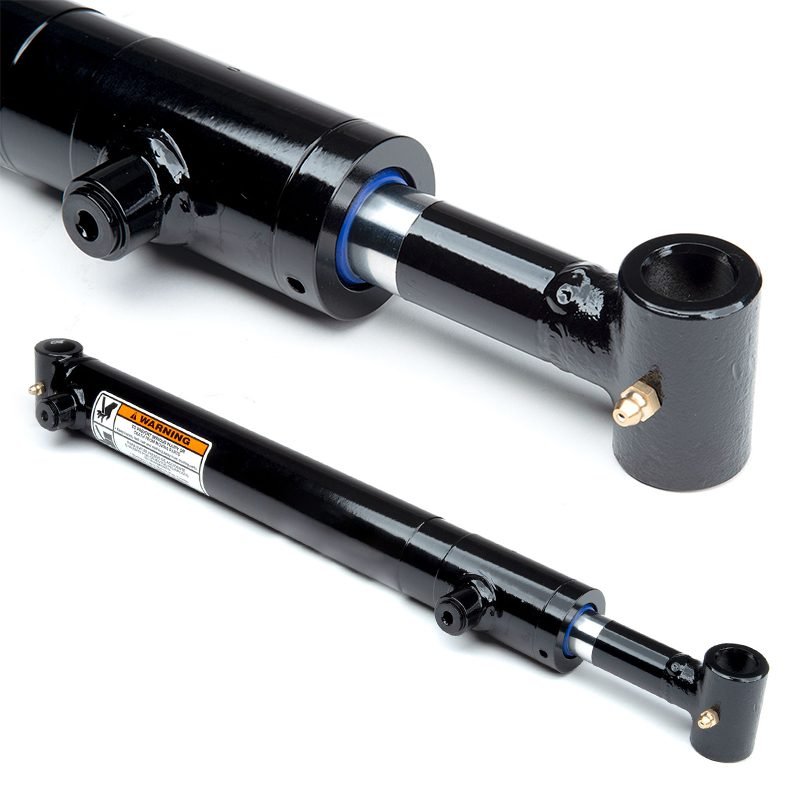

Loader Welded Hydraulic Cylinder: 1.5 Bore x 20 Stroke – 1 Rod
- Bore: 1.5 inches (the internal diameter of the cylinder)
- Stroke: 20 inches (the maximum distance the piston can travel)
- PSI: 3000 (the operating pressure, in pounds per square inch)
- Pin Diameter: 0.75 inches (the diameter of the pins used for mounting the cylinder)
- Retracted Length: 28 inches (the total length of the cylinder when the rod is fully retracted)
Product Description
- Weight: 15.87 lbs
- Bore: 1.5 inches (internal cylinder diameter)
- Stroke: 20 inches (maximum piston travel)
- PSI: 3000 (operating pressure in pounds per square inch)
- Rod Diameter: 1 inch (diameter of the piston rod)
- Pin Diameter: 0.75 inches (mounting pin diameter)
- Retracted Length: 28 inches (total length of the cylinder when fully retracted)
- Extended Length: 48 inches (total length of the cylinder when fully extended)
- Port Size: SAE 6 (standard port size, typically used for hydraulic fittings)
- Column Load: 3340 lbs (the maximum load the cylinder rod can withstand in compression before buckling)
