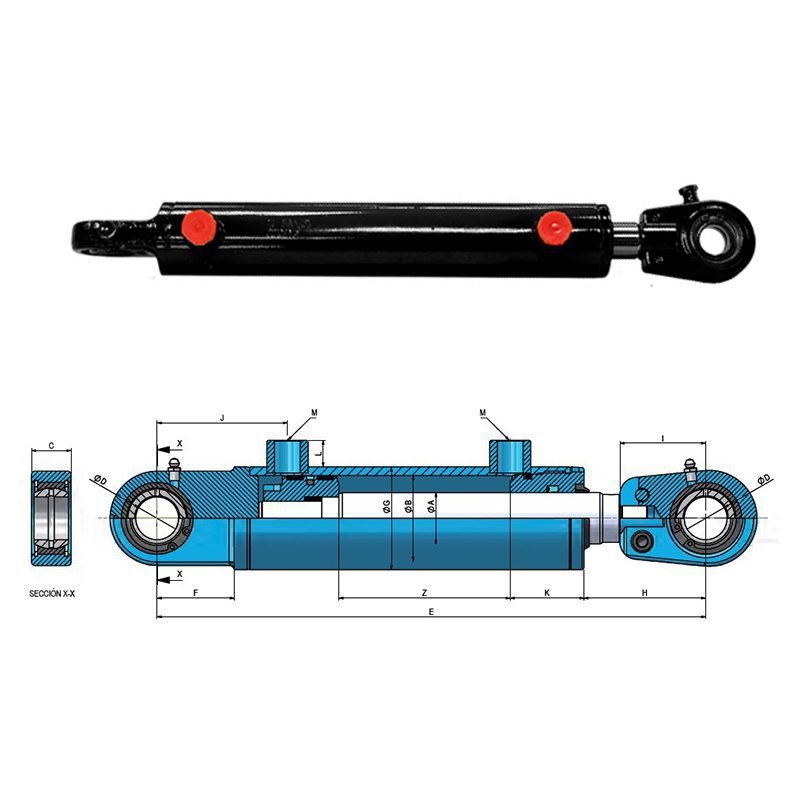

Characteristics

• Maximum Working Pressure: 200 bar
• Maximum Testing Pressure: 300 bar
• Maximum Working Speed: 0.5 m/s
• Working Temperature Range: -30 ºC to +90 ºC
• Oil Type: Mineral hydraulic

Material Specifications

• Rod:

  • Material: Chrome plated steel F-1140
  • Minimum Chrome Layer Thickness: 20 microns
  • Roughness: Ra < 0.2
  • Minimum Surface Hardness: 900 HV
  • Corrosion Resistance: Minimum 200 hours in neutral saline fog according to ISO 9227, rating 9

• Tube:

  • Material: Steel ST-52-3, DIN 2393
  • Inside Diameter Tolerance: ISO H9
  • Roughness: Ra < 0.8 microns
• Guide-Bushing: Steel F-1140 nitrited (nitride hardening)
• Piston: Steel F-1140

Seals

• Guide-Bushing Seals:

  • Dynamic: Compact polyurethane rod-seal, double lip. NBR metal wiper seal
  • Static: NBR 90 shore O-ring

• Piston Seals:

  • Dynamic: Compact double-acting polyurethane seal, plus nitrile O-ring as activator. Special polyacetal guides reinforced with glass fiber
  • Static: Polyamide locking sealing guide

Finishing

• Paint: Black prime painting

Recommendations

1. Relief Valve: Protect the cylinder circuit with a relief valve set at 200 bar.
2. Oil Cleanliness: Check the oil cleanliness (pollution) and prevent it from having strange objects by placing a filter on the cylinder circuit.
3. Bleeding the Circuit: Bleed the circuit by slightly loosening the cylinder fittings before starting up.
4. Welding Precautions:
   • Do not weld on the cylinder tube.
   • Before welding on the rod or the bottom, dismount the cylinder.
5. Storage:
   • For long-term storage, avoid outdoor storage.
   • If outdoor storage is unavoidable, ensure the rod is completely retracted or greased.
6. High-Pressure Cleaning: Protect the rod and oil ports suitably during high-pressure cleaning or blasting.
7. Single-Acting Use: For double-acting cylinders working as single acting, connect the non-used oil port to the tank.
8. Dismounting the Cylinder: If dismounting the cylinder, note that the piston is screwed onto the rod end and fixed with industrial glue. Use industrial glue when mounting again.
