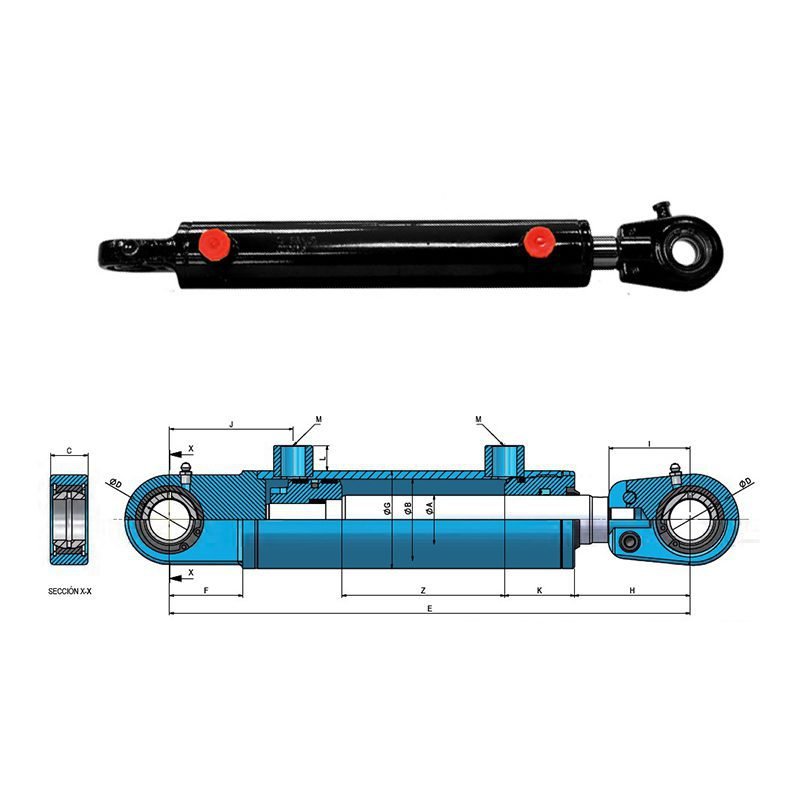

Characteristics:

• Maximum Working Pressure: 200 bar
• Maximum Testing Pressure: 300 bar
• Maximum Working Speed: 0.5 m/s
• Working Temperature: -30 ºC to +90 ºC
• Hydraulic Fluid: Mineral hydraulic oil

Material:

• Rod: Chrome-plated steel F-1140
  • Chrome Layer: Minimum 20 microns
  • Surface Roughness: Ra < 0.2
  • Surface Hardness: ≥ 900 HV
  • Corrosion Resistance: ≥ 200 hours in neutral saline fog (ISO9227, rating 9)
• Tube: Steel ST-52-3, DIN 2393
  • Inside Diameter Tolerance: ISO H9
  • Roughness: Ra < 0.8 microns
• Guide-Bushing: Steel F-1140, nitrided
• Piston: Steel F-1140

Seals:

• Guide-Bushing:

  • Dynamic: Compact polyurethane rod-seal, double lip with NBR metal wiper seal
  • Static: NBR 90 shore O-ring

• Piston:

  • Dynamic: Compact double-acting polyurethane seal with nitrile O-ring activator
  • Guides: Special polyacetal, glass-fiber reinforced
  • Static: Polyamide locking sealing guide

Finishing:

• Paint: Black prime painting

Recommendations:

• Use a relief valve set to 200 bar to protect the cylinder circuit.
• Ensure oil cleanliness and use a filter on the cylinder circuit to avoid contamination.
• Bleed the circuit before starting by loosening the fittings slightly.
• Do not weld on the cylinder tube. If welding on the rod or bottom is necessary, dismount the cylinder first.
• For long-term storage, avoid outdoor conditions or retract and grease the rod.
• Protect the rod and oil ports during high-pressure cleaning or blasting.
• When using the cylinder as single-acting, connect the unused oil port to the tank.
• During disassembly, note that the piston is screwed onto the rod end with industrial glue, requiring re-application of glue when reassembling.
