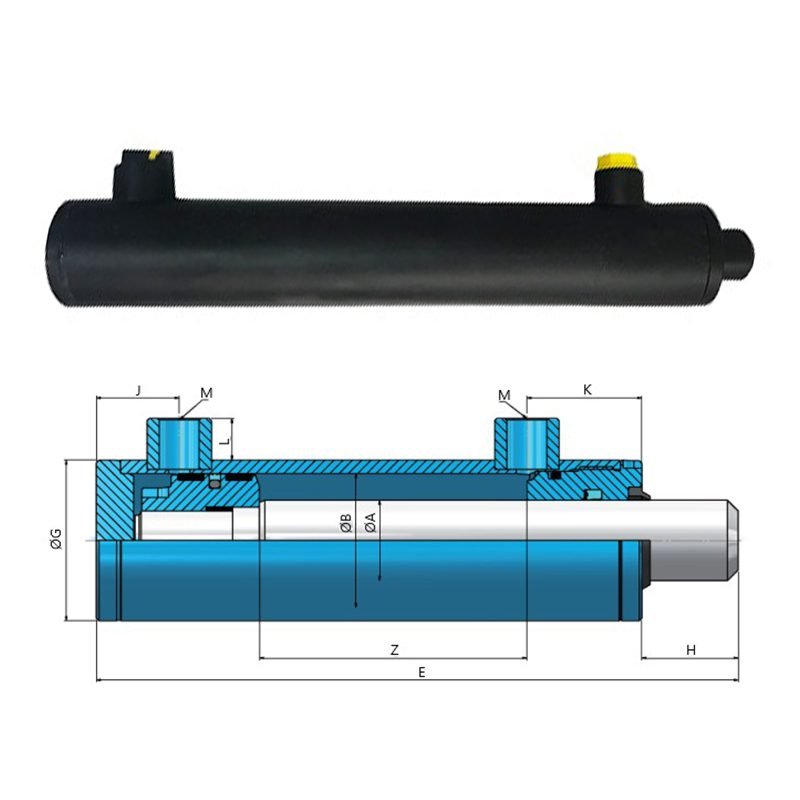

Characteristics:

• Maximum Working Pressure: 200 bar
• Maximum Testing Pressure: 300 bar
• Maximum Working Speed: 0.5 m/s
• Working Temperature Range: -30 ºC to +90 ºC
• Oil Type: Mineral hydraulic

Material:

• Rod:

  • Material: Chrome plated steel F-1140
  • Minimum Chrome Layer Thickness: 20 microns
  • Surface Roughness: Ra < 0.2
  • Minimum Surface Hardness: 900 HV
  • Corrosion Resistance: Minimum 200 hours in neutral saline fog (ISO 9227 rating 9)

• Tube:

  • Material: Steel ST-52-3, DIN 2393
  • Inside Diameter Tolerance: ISO H9
  • Surface Roughness: Ra < 0.8 microns

• Guide-Bushing:

  • Material: Steel F-1140, nitrited

• Piston:

  • Material: Steel F-1140

Seals:

• Guide-Bushing:

  • Dynamic: Compact polyurethane rod-seal, double lip; NBR metal wiper seal
  • Static: NBR 90 shore O-ring

• Piston:

  • Dynamic: Compact double-acting polyurethane seal with nitrile O-ring activator; special polyacetal guides reinforced with glass fibre
  • Static: Polyamide locking sealing guide

Finishing:

• Paint: Black prime painting

Recommendations:

• Circuit Protection: Use a relief valve set at 200 bar
• Oil Cleanliness: Ensure oil is clean and free from contaminants; use a filter in the cylinder circuit
• Circuit Bleeding: Bleed the circuit by slightly loosening the cylinder fittings before start-up
• Welding Precautions:
  • Do not weld on the cylinder tube
  • Dismount the cylinder before welding on the rod or bottom
• Storage:
  • Avoid outdoor storage if possible
  • If outdoor storage is unavoidable, keep the rod fully retracted or greased
• High-Pressure Cleaning: Protect the rod and oil ports
• Single Acting Operation: Connect the non-used oil port to the tank
• Cylinder Dismounting: The piston is screwed onto the rod end and fixed with industrial glue; use industrial glue when reassembling
