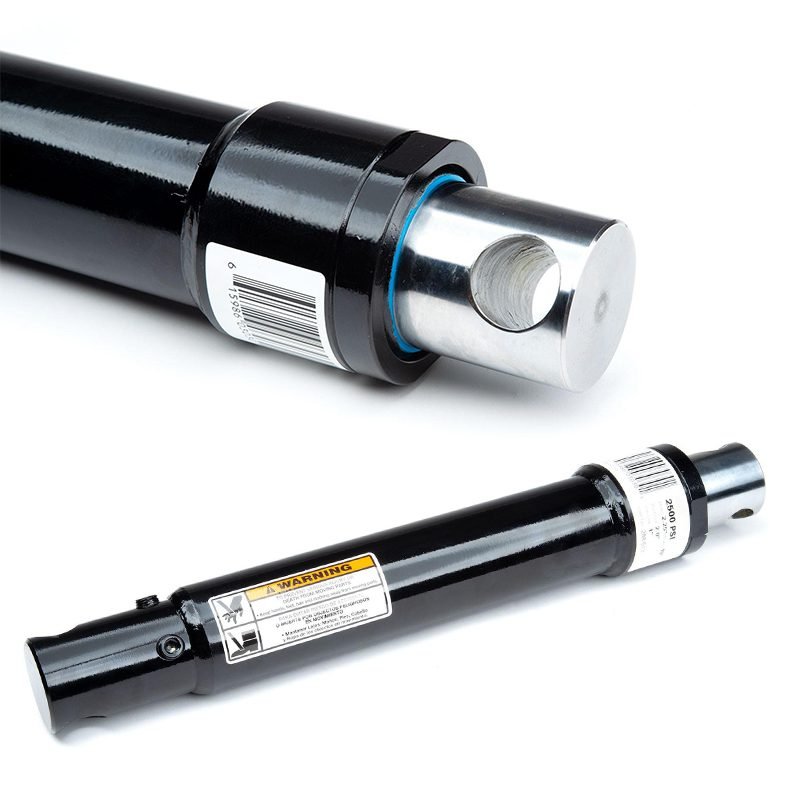

Single Acting Hydraulic Cylinder: 1.5 Bore x 8 Stroke – 1.5 Rod
- Bore: 1.5 inches — This is the internal diameter of the cylinder, determining the force the cylinder can produce.
- Stroke: 8 inches — The distance the piston travels within the cylinder.
- PSI: 2500 — The maximum pressure the cylinder can handle, measured in pounds per square inch.
- Pin Diameter: 0.75 inches — The diameter of the pin used to attach the cylinder to the equipment.
- Retracted Length: 15.25 inches — The total length of the cylinder when fully retracted.
Product Description
- Weight: 12.13 lbs — The overall weight of the hydraulic cylinder.
- Bore: 1.5 inches — The internal diameter of the cylinder, affecting the force the cylinder can generate.
- Stroke: 8 inches — The maximum distance the piston moves inside the cylinder.
- PSI (Pressure Rating): 2500 PSI — The maximum pressure the cylinder can withstand.
- Rod Diameter: 1.5 inches — The diameter of the piston rod that extends and retracts.
- Pin Diameter: 0.75 inches — The diameter of the mounting pins.
- Retracted Length: 15.25 inches — The total length of the cylinder when fully retracted.
- Extended Length: 23.25 inches — The length of the cylinder when fully extended (retracted length + stroke).
- Port Size: 1/4 NPT — The size of the hydraulic ports, where fluid enters and exits the cylinder.
- Column Load: Not Available (NA) — Column load capacity isn’t provided, which would typically refer to the axial force the cylinder can handle without buckling.
